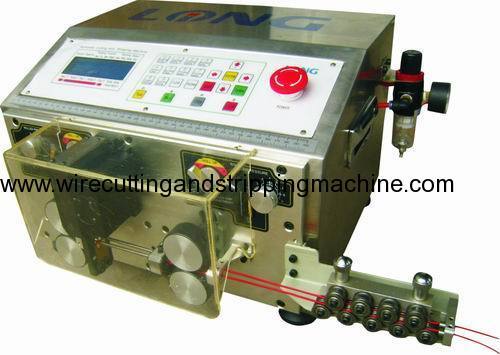

LLBX-3 Automatic Double Wires Cutting & Stripping machine, cable stripping machine, cable cut and strip machine

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LLBX-3

Production Capacity: 100 sets/ month

Delivery Date: 5 days

Means of Transport: Ocean,Land,Air

Packing: International standard pack...

Machine for stripping and cutting wires with size AWG # 18-28 (0.08~0.8mm2)

Description:

Product information:

Good cutting system uses two-blade running vertically.

The set of blade can cut, full-strip, and semi-strip the double wires.

Special design for processing double wires. The processing efficiency is about 2 times faster than the LLBX-2's

Wire feeding speed and blade cutting speed can be adjusted separately, total 10 levels (0-9) for choice.

Product specification:
1) Overall size: W440×D400×H300 mm

2) Weight: 28 kg

3) Power supply: AC 220V /50HZ AC110V/60HZ

4) Power consumption: 300W

5) Available stripping length: 0.2--30 mm

6) Available cutting length: 0.2-- 99999 mm

7) Cutting tolerance: ± (0.2+0.002*L) mm

8) Wire type: PVC, VSF, IV, KV, Teflon, Glass Wire

9) Wire size: AWG # 18-28 (0.08~0.8mm2)

10) Processing speed: L=100 mm A=B=3, 85*2pcs/min

11) 4-wheel driving

12) Machinery parts: High-quality motors and drivers, stainless steel outside case, Japan NSK bearing, Taiwan brand EG screw & fan. One set TGK inner hexagon spanner free of charge
